R&D Compression Flexible Engine Mount (SET OF 4) 800-005

Original price £191.52 - Original price £191.52
Original price
£191.52
£191.52 - £191.52
Current price £191.52

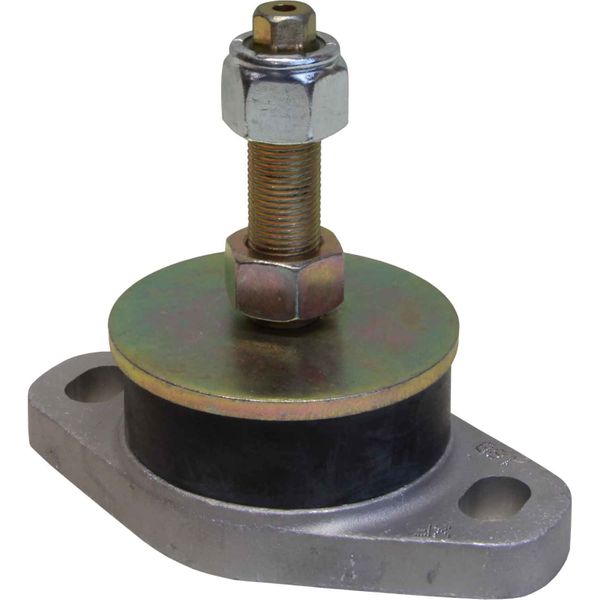

 The compression flexible engine mounting is a low height mount with minimum deflection.

Typical uses: 2 and 3 Cylinder Long Stroke, 4 Cylinder, 6 Cylinder and more.

Compression mountings are lower in height and give reduced isolation compared to Shear and Super mountings. Clearance between the underside of the height adjusting nut and the top washer of the mounting should not be more than 9mm (0.375").

If required, increase the height with a spacer under the mount. The first adjusting nut adds approximately 10mm.

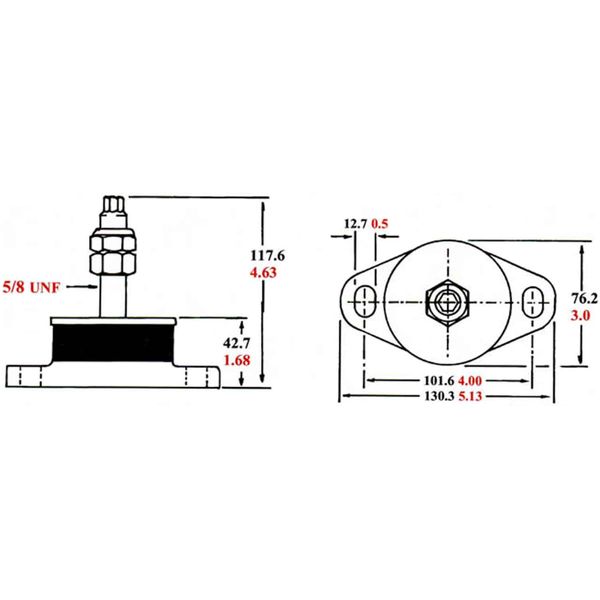

The dimensions of the flexible engine mount are shown in the drawing located below the main image, click the image to and hold your mouse over the image view the full size drawing.

Application 2 & 3 Cylinder Long Stroke Engines, 4 Cylinder Engines, 6 Cylinder & Over Engines
Height 116mm (4.57"), Base: 44.5mm (1.75")
Length 130mm (5.13")
Max Load 145kg to 227kg (320lbs to 500lbs)
Width 76mm (3")
Brand R&D Marine
Suitable For 2 & 3 Cylinder Long Stroke Engines|4 Cylinder Engines|6 Cylinder & Over Engines
Country of Origin United Kingdom
Engine Mount Compression Engine Mounts
Deflection 2.3mm (0.09")
Dimensions Height Adjusting Nut Thickness: 14mm (0.55")
Mount Pre loaded 1.5mm (0.06")
Stud Size 5/8" UNF
