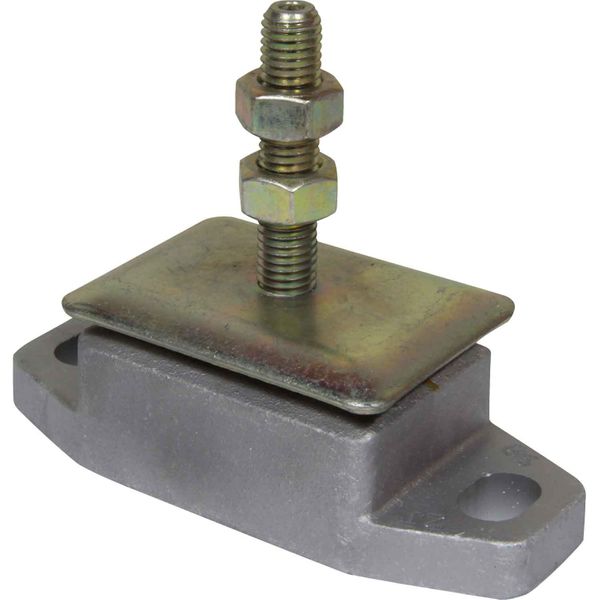

R&D Flexible Engine Mount (Shear Type / 30 - 90LBS / 12mm Stud) 800-038

Original price £37.80 - Original price £37.80
Original price
£37.80
£37.80 - £37.80
Current price £37.80

R&D flexible engine mountings have been designed and engineered for the rigours of marine engines.

The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test. The mount is soft vertically and at right angles to the crankshaft to isolate vibrations, as well as being able to cope with propeller thrust. It is a low height mounting to absorb vibrations better.

Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.

Application 1, 2 & 3 Cylinder Short Stroke High Speed Engines

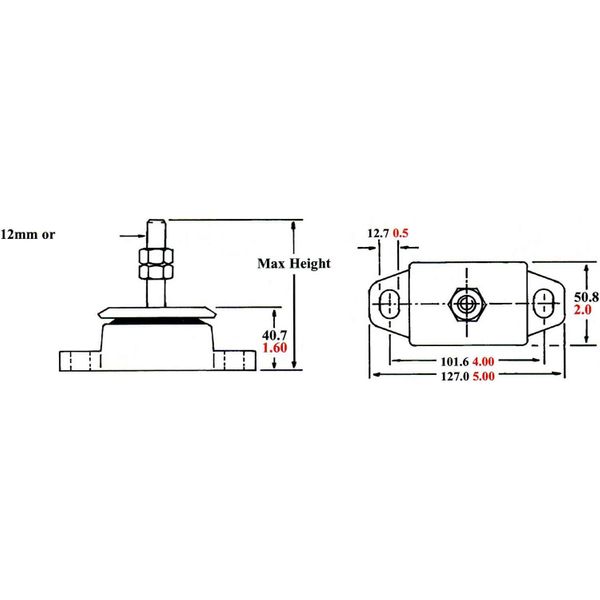

Height 99mm (3.9"), Base: 41.69mm (1.64")
Length Base: 127mm (5")
Max Load 14kg to 41kg (30lbs to 90lbs)
Width Base: 55.37mm (2.18")
Brand R&D Marine
Suitable For 1, 2 & 3 Cylinder Short Stroke High Speed Engines
Country of Origin United Kingdom
Engine Mount Shear Small Engine Mounts
Deflection 1.8mm to 3.4mm (0.07" to 0.14")
Dimensions Height Adjusting Nut Thickness: 10mm (0.39")
Mount Pre loaded 1.8mm (0.07")
Stud Size 12mm
