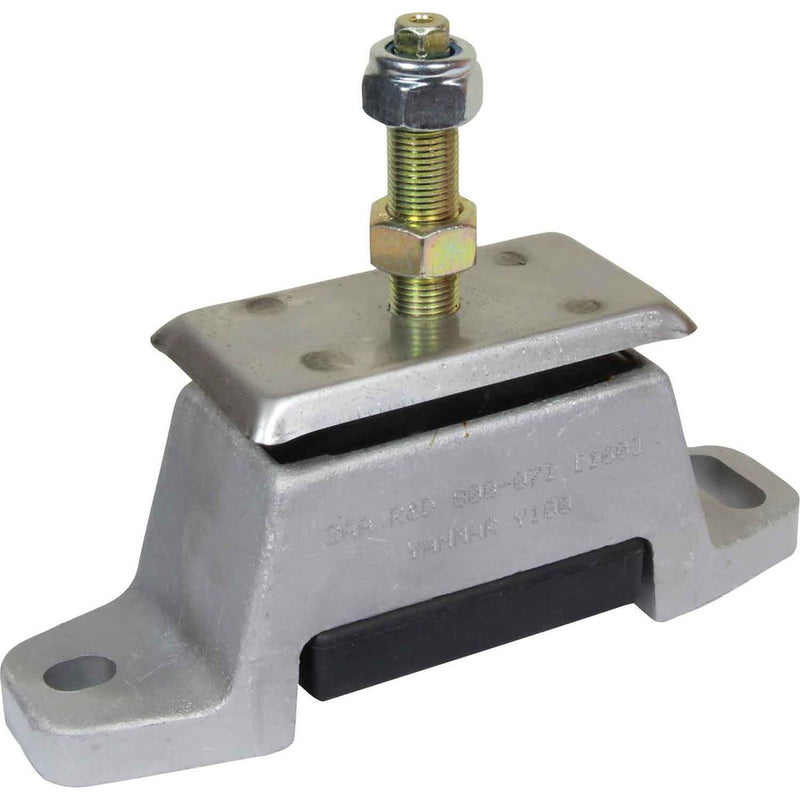

R&D Flexible Engine Mount for Yanmar 2QM15 Engines 50-160Lbs per mount

R&D Flexible Engine Mount for Yanmar 2QM15 Engines 50-160Lbs per mount

£110.25 - £110.25
£110.25
£110.25 - £110.25
£110.25
by T.Norris Marine

The R&D flexible engine mount is designed to be a direct replacement for the Yanmar engine mount Y100.

The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test.

Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.

Height Description 155mm (6.1"), Base: 87mm (3.43")
Length 206mm (8.11")
Maximum Load Description 23kg to 73kg (50lbs to 160lbs)
Type Flexible Mounts
Width 60mm (2.36")
Brand R&D Marine
Hole Centres 175mm (6.89")
Country of Origin United Kingdom
Engine Mount Engine Mounts For Yanmar Engines
Deflection 2.3mm to 8.5mm (0.09" to 0.335")
Dimensions Height Adjusting Nut Thickness: 12.7mm (0.5")
Mount Pre loaded 2.3mm (0.09")
Stud Size M16 x 1.5
