R&D Flexible Engine Mount 1GM10 for Yanmar Engines 40-131Lbs per mount

R&D Flexible Engine Mount 1GM10 for Yanmar Engines 40-131Lbs per mount

£110.25 - £110.25
£110.25
£110.25 - £110.25
£110.25
by T.Norris Marine

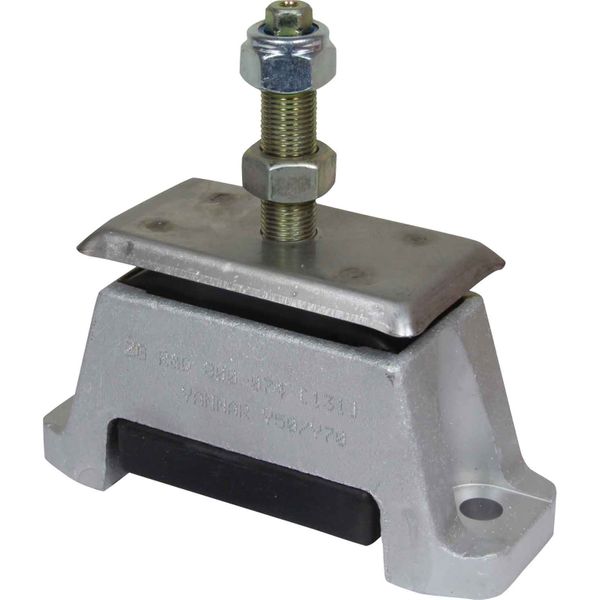

The R&D flexible engine mount is designed to be a direct replacement for the Yanmar engine mount 1GM.

The flexible engine mount has added features of being fail-safe, working within controlled limits and able to withstand a roll-over test.

Maximum clearance between the underside of the height adjusting nut and top washer must not be more than 10mm. If more height is required use a spacer under the mounting casting.

Height Description Maximum: 155mm (6.1")
Maximum Load Description 18kg to 60kg (40lbs to 131lbs)
Type Flexible Mounts
Brand R&D Marine
Hole Centres 128mm
Suitable For Yanmar
Engine Mount Engine Mounts For Yanmar Engines
Deflection 2.3mm to 8.5mm (0.09" to 0.335")
Dimensions Height Adjusting Nut Thickness: 12.7mm (0.5")
Mount Pre loaded 2.3mm (0.09")
Stud Size M16 x 1.5
