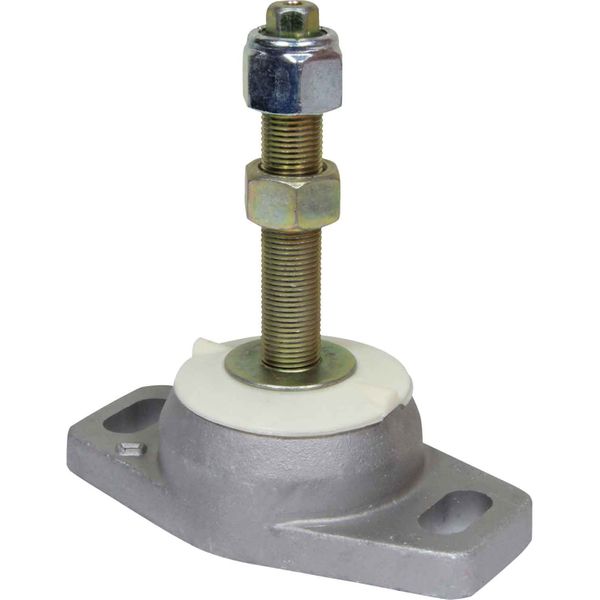

R&D Compression Flexible Engine Mount (300LBS / 5/8" Stud) Also suitable for electric motors
Original price
£39.07
-
Original price
£39.07
Original price
£39.07
£39.07
-
£39.07
Current price
£39.07
800-036
The R&D compression flexible engine mounting is a competitive, low height, medium capacity mount giving good engine control.
Typical uses: 2 & 3 Cylinder Long Stroke, 1, 2 & 3 Cylinder Short Stroke High Speed, 4 Cylinder.
Compression mountings are lower in height and give reduced isolation compared to Shear and Super mountings. Clearance between the underside of the height adjusting nut and the top washer of the mounting should not be more than 9mm (0.375").
If required, increase the height with a spacer under the mount. The first adjusting nut adds approximately 10mm.
Also suitable for electric motors
| Application | 1, 2 & 3 Cylinder Short Stroke High Speed Engines, 2 & 3 Cylinder Long Stroke Engines, 4 Cylinder Engines |
| Capacity Description | 300 lbs |

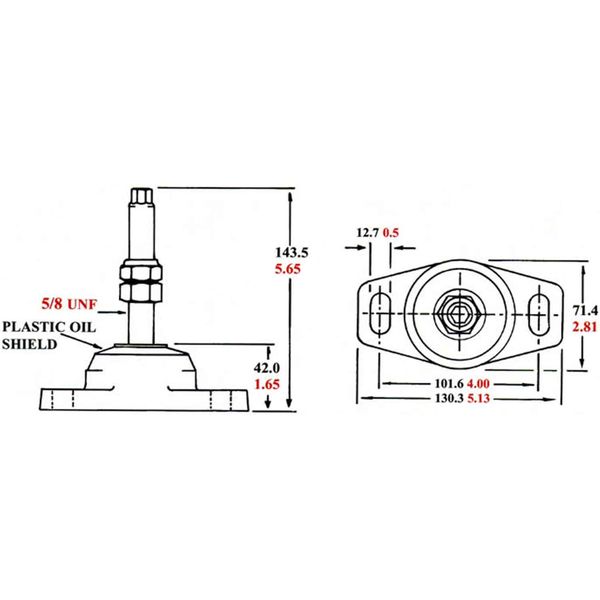

| Height Description | 116mm (4.57"), Base: 44.5mm (1.75") |
| Length | Base: 130mm (5.13") |
| Maximum Load Description | 136kg (300lbs) |
| Width | Base: 76mm (3") |
| Brand | R&D Marine |
| Hole Centres | 101.6mm (4") |
| Suitable For | 1, 2 & 3 Cylinder Short Stroke High Speed Engines|2 & 3 Cylinder Long Stroke Engines|4 Cylinder Engines |
| Country of Origin | United Kingdom |
| Engine Mount | Compression Engine Mounts |
| Deflection | 1.65mm (0.065") |
| Dimensions | Height Adjusting Nut Thickness: 14mm (0.55"), Base Thickness: 12mm |
| Stud Size | 5/8" UNF |
