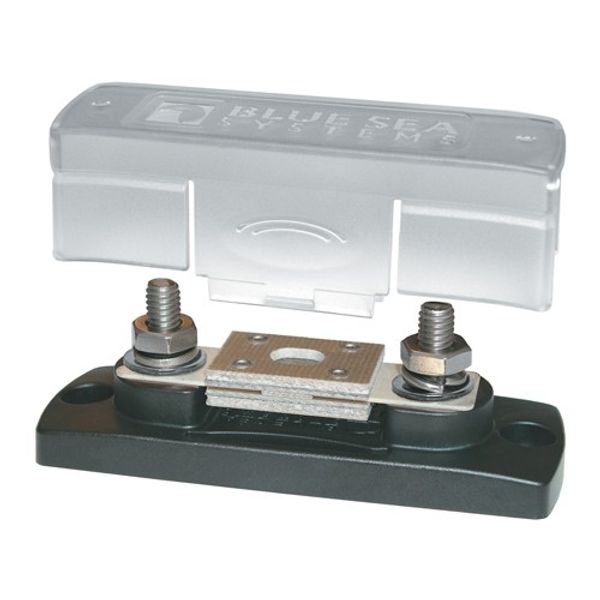

Blue Sea Fuse Block ANL 35-300 Amp

ANL FUSE BLOCK SYSTEMS

Max voltage operating: 32V DC

Accepts 5/16" (M8) ring terminals

M5 screw mounting holes

Cable size: up to 2/0 AWG

Insulating cover satisfies ABYC/USCG insulation requirements

Cover breakouts allow wire access in any direction

Insert moulded studs ensure secure fuse mounting

Stainless steel studs provide resistance to corrosion and high torque

UL 94-V0 base resists high heat

Swing out design allows fuse replacement without removing fasteners
