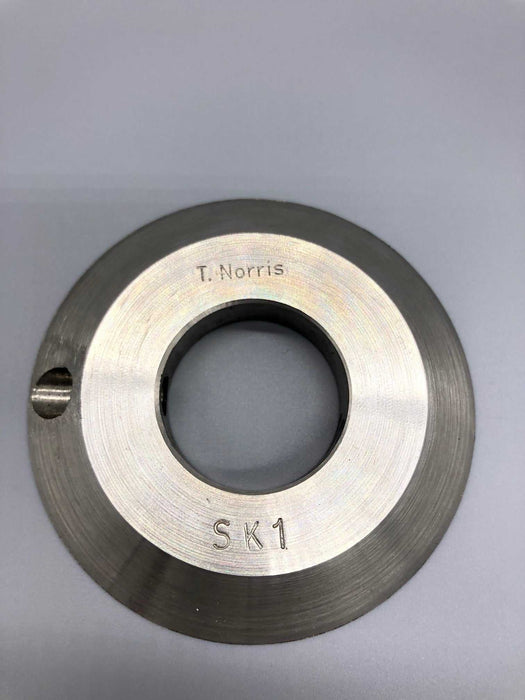

Propeller Shaft - Slide-On Rope Cutter
Disc type propeller shaft rope cutter.
EFFICIENT
Manufactured in high quality 316 stainless steel the SHAFT KNIFE works when it's needed and cannot suffer from shear loads. Other devices have passing cutting edges which can cause shear loads when cutting and this can be disastrous if a solid object is encountered.
AFFORDABLE
Due to its simplicity, the SHAFT KNIFE is a low-cost product and does not suffer from complicated bearing replacement
and maintenance. It might occasionally require sharpening.
EASY TO FIT
Remove the propeller, dimple the shaft to locate and fit the SHAFT KNIFE and replace the propeller. It's as easy as that.
No special tools required and no boatyard charges for fitting.
HOW TO SELECT YOUR SHAFT KNIFE
1 Measure the EXACT shaft diameter.
2 Measure the diameter of the propeller boss and outboard bearing or 'P' bracket. Use the largest of these dimensions
to match the "Hub range" in the table below.
When ordering please select the shaft diameter
|
Dimension and Selection Guide
|
|||
|
Model
|
Shaft size range
|
Diameter
|
Thickness
|
|
SK1
|
20mm, 22mm, 25mm,30mm 3/4", 7/8", 1", 1. 1/8", 1. 1/4" |
80mm
3.25"
|
12mm
0.47"
|
|
SK2
|
35mm, 40mm
1. 3/8". 1. 1/2"
|
100mm
4"
|
12mm
0.47"
|
|
SK3
|
45mm, 50mm
1. 3/4", 2"
|
127mm
5"
|
16mm
5/8"
|
|
SK4
|
55mm, 60mm, 65mm, 70mm, 75mm
2. 1/4", 2. 1/2", 2. 3/4", 3"
|
150mm
6"
|
19mm
3/4"
|
